52% Ultimate 10-300 – Short Kit
The Ultimate Aircraft has been a Favorite for pilots all over the World!
Our 52% Ultimate’s Design utilizing a Long tail Moment, Coupled with a Super light weight construction design, Correct airfoil & Wing Spacing, Rewards the Pilot with a Model that can Not only Fly Precision but also just as capable with Low and Slow 3D and, it looks amazing while doing it.
The Ultimate (Like all Our Models) utilizes the latest developments in design and constructions techniques to provide a rewarding building experience.
The Ultimate from SMD is the pinnacle of the biplane platform at an incredible size that commands the sky, This is an amazing all round model that will not disappoint!
Features:
- High level of interlocking construction, For quick, accurate building & Strength
- Removable horizonal stabilizers
- Precut slots in Tail plane to suit robart hinges
- Cable path in aft of Fuselage for servo wires
- Fuel tank, ignition & Battery tiedown points
- Built in Canister Tunnel
Specifications:
- Weight: 52lb (24kg)
- Wingspan: 118″ (3010mm)
- Length: 127″ (3245mm) – With Spinner
- Height: 39.7″ (1010mm)
- Engine: 170- 220cc 2 Stroke (Recommend ZDZ 195 or DA 215)
- Servos: 14x (35kg+) + 1x Throttle
- Spinner size: 6″
- Wheel size: 6″
- Wing tube Socket size: 36mm OD
- (Recommend 35mm OD Aluminum or Carbon wing Tube)
- Tail tube socket size: 8mm OD
- (Recommend 7mm OD Carbon rod for Stab Tube)
The Short Kit includes:

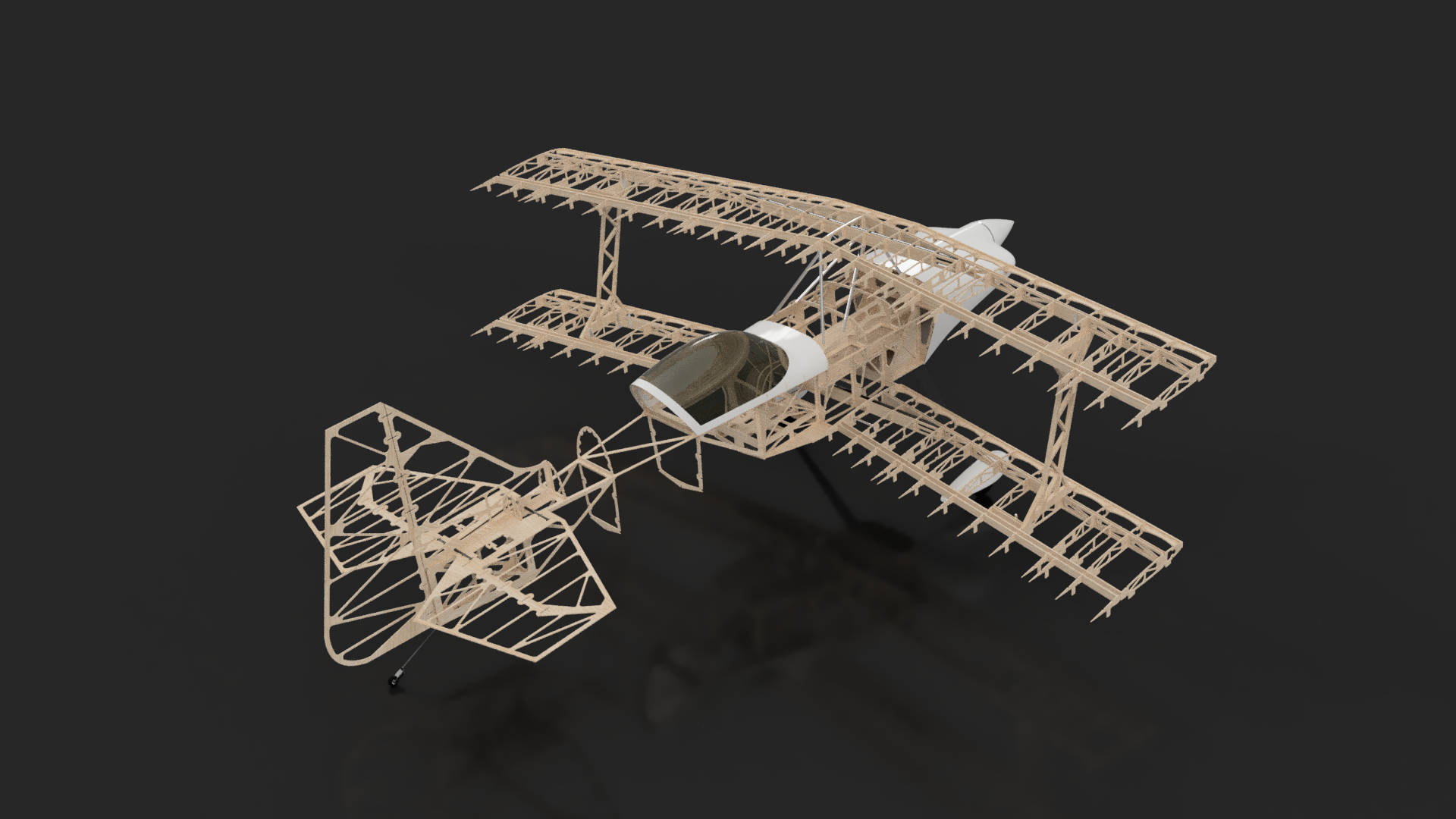

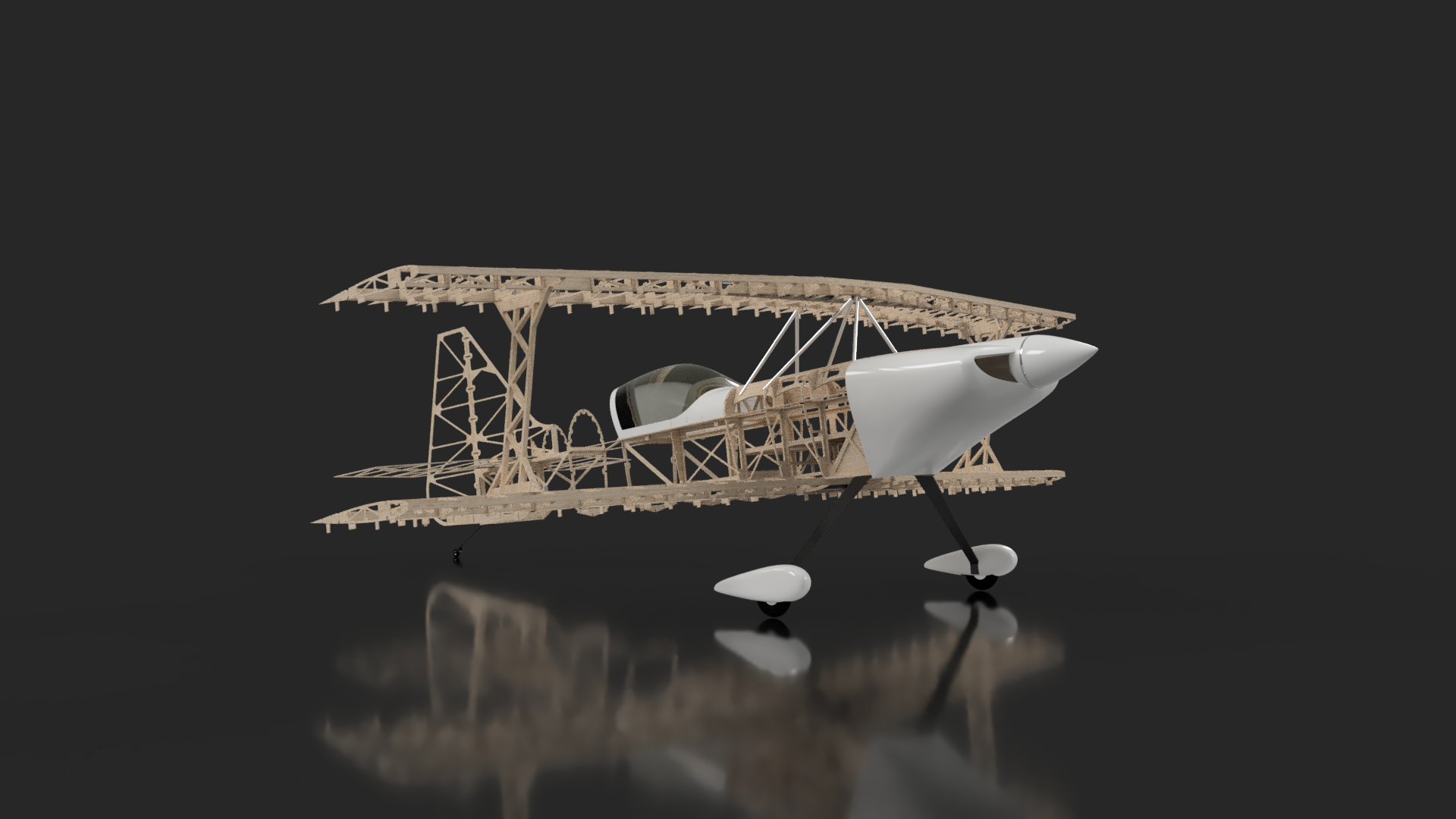

- Precision Laser cut wooden parts from premium European woods
- CNC Laser cut Stainless steel Top wing mount and Flying wire mounting set
- CNC milled TUFNOL Control Horns
- 1:1 Scale detailed Printed wing plans + Digital Instructions.
- A comprehensive list of all the Components & Materials required to complete the model.

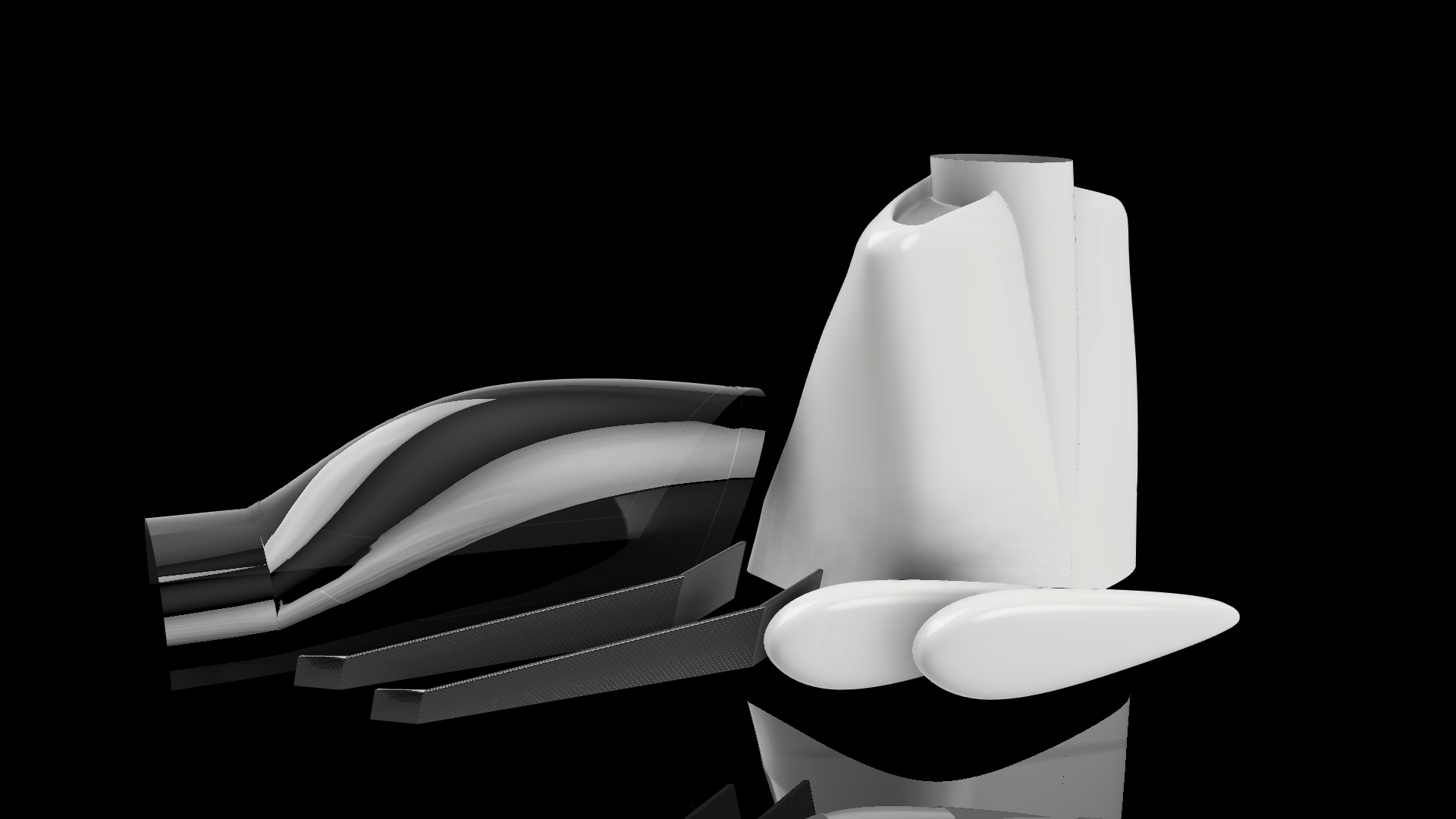

- Premium GFK Cowling (Produced from CNC created mold for digital precision, Shape & Symmetry)
- Premium CFK and GFK Main Under carriage
- Lexan Vacuum formed Canopy
- Premium Light weight GFK Wheel Pants
Please note: As each kit is normally manufactured to order, please allow 4-8 weeks for Manufacture and shipping dispatch, With the wood kit being manufactured and shipped first and then Composite parts to follow shortly after
However we will keep you updated at each stage of your kits Production.
